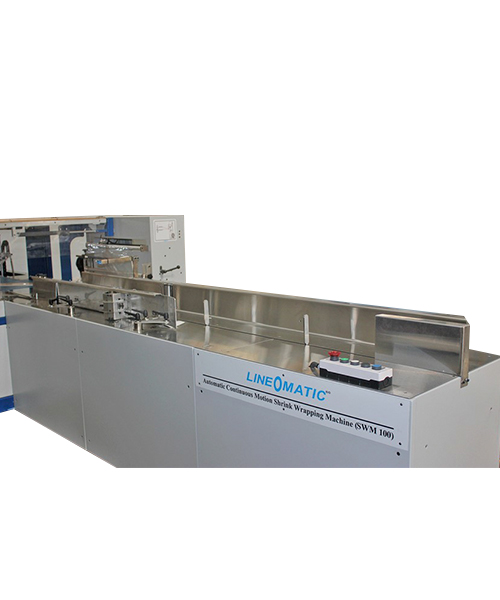

Manual Infeed Conveyor System
Precise & stable entry
Insertion Unit
Multiple-type label insertion capabilities
Cooling Fan Conveyor
For LDPE

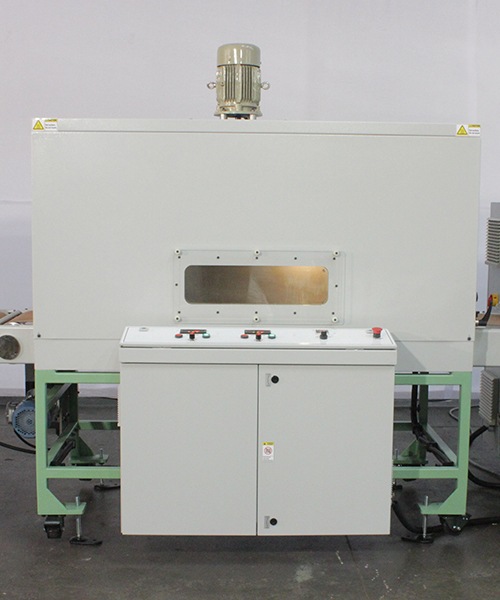

Shrink Tunnel
Turbo hot air flow circulation

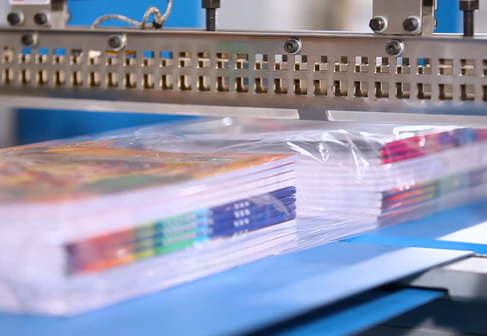

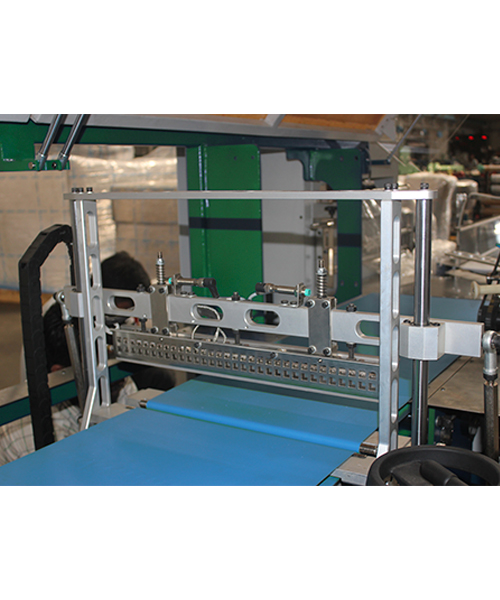

Front Sealer
Accurate sealing at high speed
-
Max. Conv. Strokes
80 cycles/minute
-
Shrink Wrapping Machine
- SWM 10L I SWM 50 I SWM 100
Automatic Shrink Wrapping Machine (SWM 50)
consists of a Manual in-feed finger conveyor system, Side Sealer, Shrink Tunnel, and Control
Panel (PLC).
The Automatic Continuous-Motion Shrink Wrapping Machine (SWM 100) consists of a Manual
in-feed finger conveyor system, Continuous-Motion Front Sealer, Shrink Tunnel, and Control
Panel (PLC).
Request a Quote
Download Brochure
- Companies & Traders who want to wrap a variety of products
- Continuous wrapping motion without stopping the machine
- Consistent wrapping performance
- Easy to operate & low in maintenance
- Lower heat loss to Surroundings
- High-thickness sealing capabilities at higher speed
- save 1000 recipes of product in PLC for a quick job change
- Less wastage
- Savings in manpower cost
- Different Infeed Conveyors
- Insertion Unit
- Drive Roll Conveyor
- Free Roll Conveyor
Technical Specification
| Model | SWM 10L | SWM 50 | SWM 100 |
|---|---|---|---|
| Packing Capacity* (cycles/minute) | 8 | 50 | 80 |
| Packaging Product Size (mm) (L X W X H) | 350 X 450 X 300 | 75-1000 X 80-400 X 5-180 (W+H ≤ 480 mm) | 75-1000 X 80-400 X 5-180 (W+H ≤ 480 mm) |
| Max. Film Reel Diameter (mm) | 300 | 300 | 300 |
| Front Sealing Blade Size (mm) | 1100 | 500 | 500 |
| Film Type | LDPE | POF & LDPE | POF & LDPE |
| Max. Film Width (mm) | 950 | 610 | 610 |
| Sealing Blade Temperature (°C) | 190 – 210 | 180 – 210 | 180 – 210 |
| Floor Space (L x W x H) (meters) | 13 X 9 X 3.6 | 13 X 6 X 4 | 13 X 6 X 4 |
| * Depends upon product size, product type, Film type & thickness. | |||
| * Rec. Floor space is considered for offline machines. | |||
