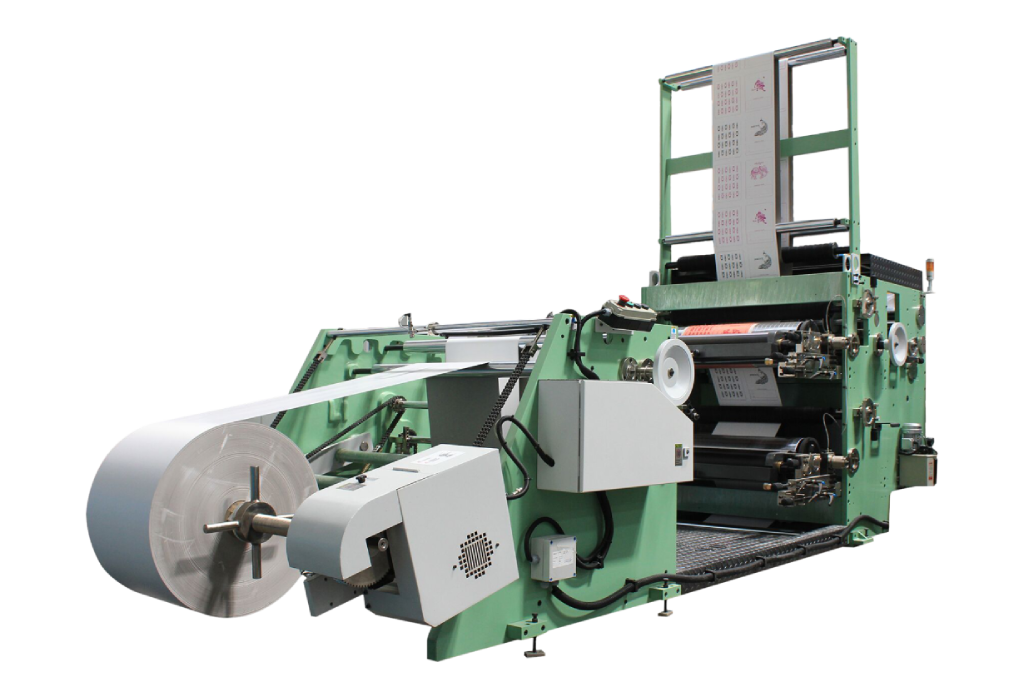

Reel Form Inserter

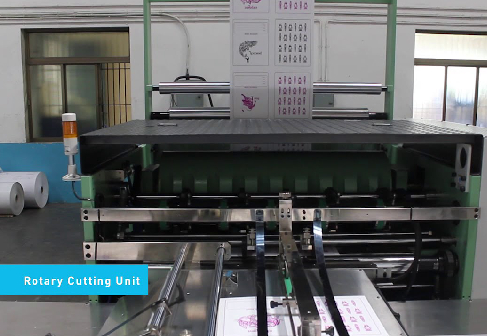

The reel form Inserter is designed for using title covers in reel form instead of sheet form for exercise notebooks. It consists of a Reel Unwinding Stand, a Flexo Printing Unit, and a Rotary cutting unit.
Request a Quote
Download Brochure
Technical Specification
| Model | BOLT RB 104 | BOLT RB 120 |
|---|---|---|
| Reel Diameter (mm) | 1200 | 1200 |
| Reel Weight (Kgs.) | 800 | 900 |
| Core Diameter (mm) | 76.2 | 76.2 |
| Title Cover (GSM) | 95 to 200 | 95 to 200 |
| No. of Color | 1 Colour printing on one side | 1 Colour printing on one side |
| Width of Title cover (mm) | 290 to 450 | 290 to 450 |
| Cut of Title cover (mm) | 400 to 1040 | 600 to 1200 |
| * Optionals: Max. 2 Colour printing on one side | ||
